Type：Triple Eccentric

Series：D43H-150LB

Size: DN40-DN600/2”-24”

Pressure rating: PN6/PN10/PN16/5K/10K/150LB/300LB/600LB

Design standard: API/EN/JIS

Service: OEM&ODM

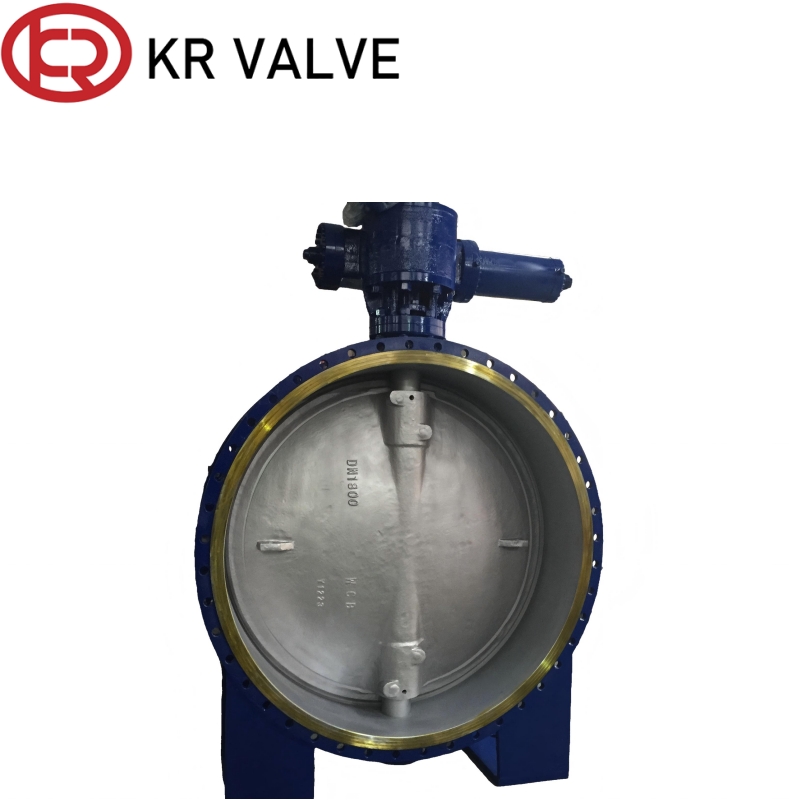

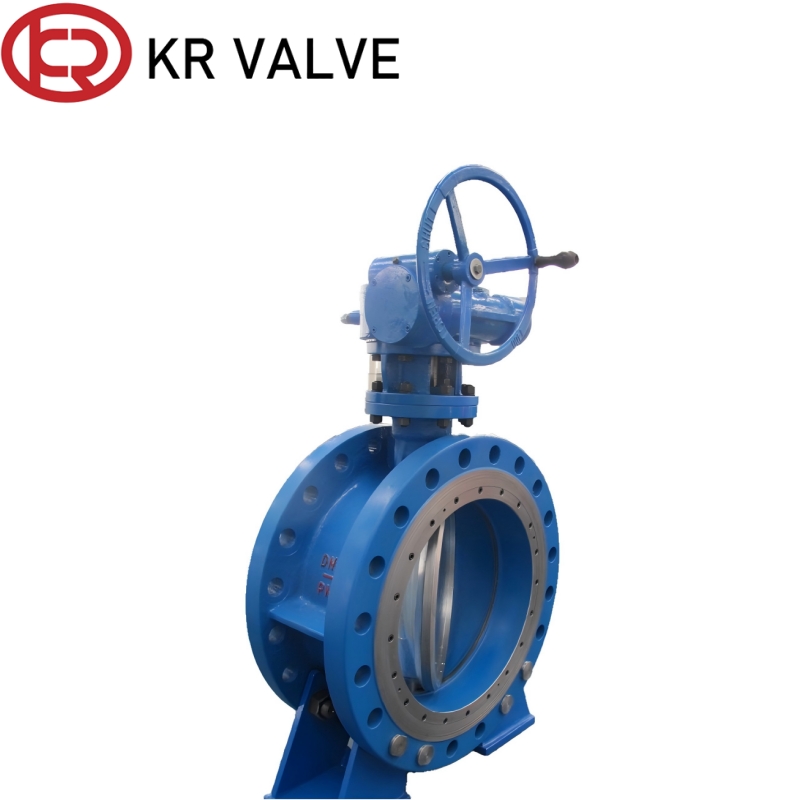

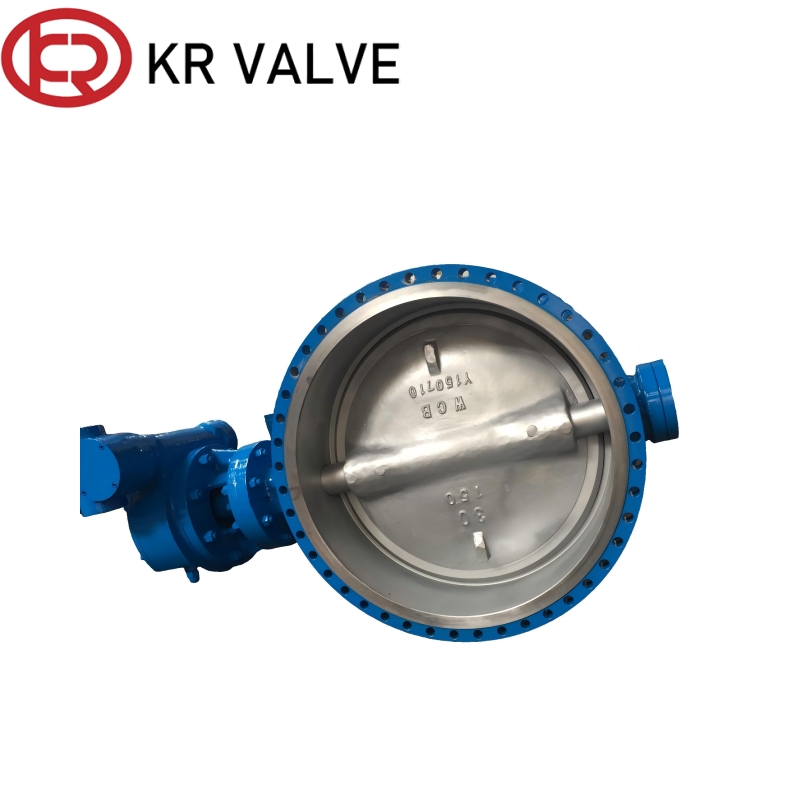

The large-size flanged triple eccentric butterfly valve adopts reinforced overall structure and metal hard sealing, its triple eccentric design realizes friction-free opening & closing, effectively lowers operating torque for big bore, achieves bidirectional zero leakage; flanged connection improves pipeline mounting stability against large flow shock, excellent resistance to high temperature, high pressure and particle medium abrasion, available for both shut-off and flow regulation.

Send Inquiry

Product Description

Technical Parameters

Valve Type: Flange butterfly valve Structure: Eccentric
Standard: API/EN/JIS Workmanship: Investment casting
Sealing direction: Bidirectional Sealing grade: Zero leakage
Temperature: -190°C < T < 700°C Operation: Handle
Flange butterfly valve diagram

Product Characteristics

The large-size flanged triple eccentric butterfly valve features reinforced thick body and triple-offset metal hard seal. It boasts outstanding deformation resistance and self-tightening bidirectional bubble-tight shutoff. With full bore low-resistance flow path and stable flanged connection, it matches various heavy-duty actuators and serves high-temperature large-flow main pipelines in heating, power, metallurgy, environmental protection and petrochemical industries.
Triple eccentric structure

Core Advantages

✔
Large Flow & Low Resistance:
The large butterfly valve with smooth straight flow path provides large flow coefficient and minimal pressure drop, ideal for main pipeline high-flow continuous operation.
✔
Stable Sealing Under Large Pressure Difference:
Triple-offset flanged butterfly valve with metal hard seal achieves friction-free operation and self-tightening sealing, ensuring bidirectional zero leakage under strong flushing and large differential pressure.
✔
Firm Flange Connection:
Full flanged structure with uniform bolt force distribution provides high stability and vibration resistance for long-term main pipeline service.
✔
Compatible with Heavy-duty Actuators:
Optimized torque structure matches large electric, pneumatic and worm gear actuators, realizing smooth and stable opening and closing.

Packing & Delivery

Standard export wooden case packaging ensures the safety of products during long-distance transportation.
Standard export wooden case packing

Application Scenarios

The large size metal to metal flanged butterfly valve is extensively installed on large-bore main pipelines of municipal heating steam network, power plant flue gas & circulating water system, metallurgical hot air pipeline, desulfurization exhaust duct and petrochemical thermal oil & process gas piping.
Application 1
Application 2
Application 3

Material Specifications

Part Name Material
Valve bodyWCB, QT450-10, Q235, Alloy steel, stainless steel, etc.
Valve stemAlloy steel, stainless steel
Seal ringStainless steel composite multi-level
PackingFlexible graphite or stuffing
Valve seatStainless steel, cobalt based hard alloy
Valve stemStainless steel

Dimensions

Dimension Diagram
PN (MPa)DN (mm)LDD1D2Z-ΦdbfHH0AB
1.01501402852402118-Φ2224238523066150
2001523402952668-Φ2224247129785170
25016539535031912-Φ2226253332785170
30017844540037012-Φ22262606364106205
40021656551548016-Φ26262757444130240
60026778072558220-Φ303051048590198324
1.61501402852402118-Φ2224238523066150
2001523402952668-Φ2224247129785170
30017844540037012-Φ22322606364106205
40021656551548016-Φ26362757444130240
50022967062058220-Φ26422902522169306
60026778072558220-Φ304451048590198324

Frequently Asked Questions

Q1: What is a triple eccentric butterfly valve?
A1: It is a high-performance valve with three offsets that eliminate friction between the seat and seal ring during operation, ensuring long life and tight sealing.
Q2: Can this valve achieve zero leakage?
A2: Yes, the metal-to-metal triple offset design provides a bidirectional bubble-tight shutoff, meeting zero leakage standards even under high pressure.
Q3: What are the temperature limits for this valve?
A3: This valve is designed for extreme conditions, operating reliably in temperatures ranging from -190°C up to 700°C.
Q4: What types of actuators can be used?
A4: It is highly compatible with manual handles, worm gears, pneumatic actuators, and electric actuators for automated systems.
Q5: In which industries is this valve most commonly used?
A5: It is widely used in municipal heating, power plants, metallurgical pipelines, petrochemical gas piping, and environmental protection systems.
Q6: Does the valve support bidirectional flow?
A6: Yes, its structure is optimized for bidirectional sealing, making it ideal for complex pipeline configurations.
