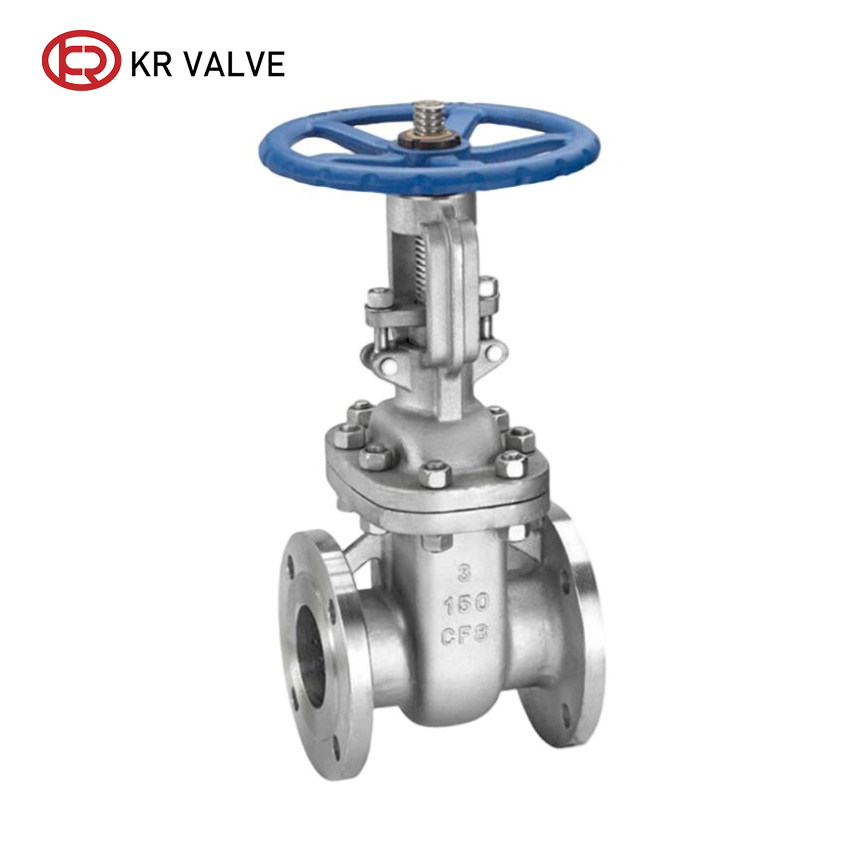

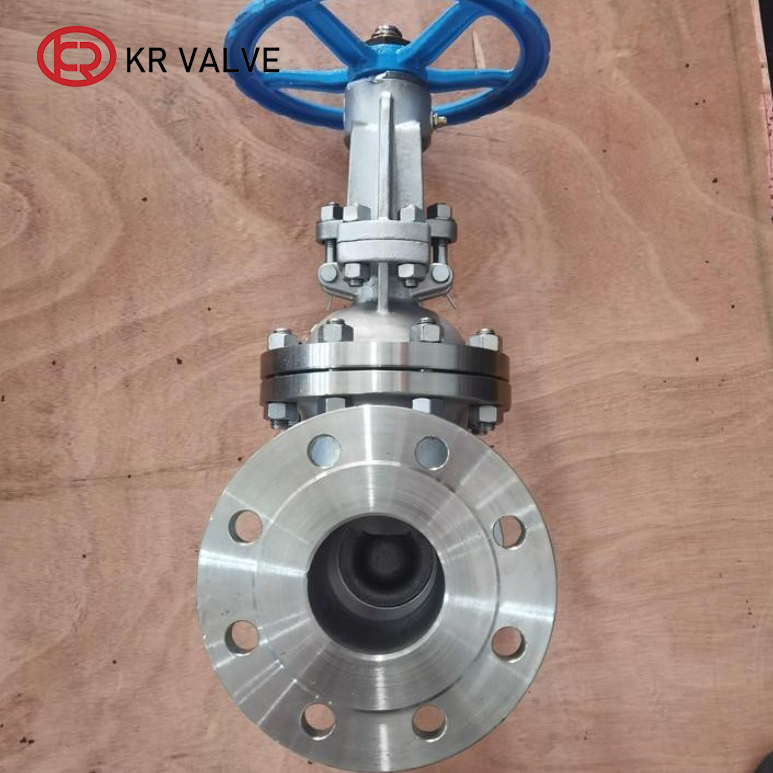

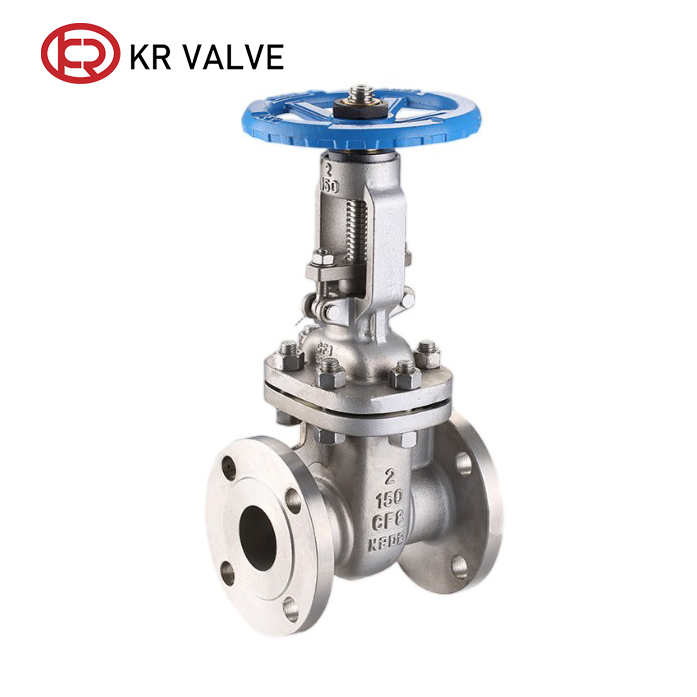

Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers
Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers
Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers
1 / 3
Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers
Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers
Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers

Wholesale CF8 Stainless steel ANSI solid wedge gate valve Suppliers, Manufacturers

Type: Metal to metal seated

Series: Z41H-150LB

Size: DN50-DN1000/2”-40”

Pressure rating: PN16/PN25/PN64/150LB/300LB/600LB

Design standard: BS/API/DIN

Service: OEM&ODM

The CF8/SS304 gate valve has good corrosion resistance and can resist corrosion from atmospheric, water, and most acidic, alkaline, and salt media, making it suitable for various corrosive environments.

Send Inquiry

Product Description

Technical Specifications
Valve Type: Metal seat gate valve Structure: Rising type
Standard: EN/API/DIN/GOST Workmanship: Investment casting
Sealing direction: Bidirectional Sealing grade: Zero leakage
Temperature: -30°C < T < 425°C Operation: Handwheel
Characteristics
⚙
The installation position, height, and inlet/outlet direction of gate valves should meet the design requirements, and the connection should be firm and tight. Handwheels, handles, and transmission mechanisms are not allowed to be used for lifting and collisions are strictly prohibited.
⚖
Before opening a gate valve with a bypass valve, the bypass valve should be opened to balance the pressure difference between the inlet and outlet and reduce the opening force.
Characteristics
Product Advantages
✔
Low fluid resistance: The gate valves for water, valve body is a straight through type. When the valve is fully opened, the gate completely moves out of the flow channel, resulting in low flow resistance.
✔
Good sealing performance: The sealing surface of SS gate valves is precision machined with multiple sealing forms (hard or soft sealing) to prevent medium leakage.
✔
Effortless operation: Compared to globe valves, CF8 gate valves are significantly easier to open and close.
Advantages
Packing

Standard export wooden case packaging ensures the safety of the valves during international transit.

Packing
Application Scenarios

The stainless steel gate sluice valves are widely used in chemical industrial parks, pharmaceutical pure water systems, and seawater desalination system pipelines.

Application 1
Application 2
Application 3
Material Specifications
Valve body/cover Gate board/seat Stem Stem nut Padding Handwheel
Carbon steel Quality carbon steel+carbide alloy Chrome stainless steel Aluminum bronze Graphite asbestos Malleable iron
Ti-Cr-Ni steel Stainless steel/carbide alloy Ti-Cr-Ni stainless steel Aluminum bronze Baptist PTFE Malleable iron
Ti-Cr-Ni-Mo steel Stainless steel/carbide alloy Ti-Cr-Ni stainless steel Aluminum bronze Asbestos packing Malleable iron
Cr-Mo steel Alloy Steel+carbide alloy Al-Cr-Mo steel 318 Aluminum bronze Flexible Graphite Malleable iron
Dimensions
Dimension Diagram
PN (MPa) DN (mm) L D D1 D2 b f N-Φd H D0
1.6 151309565451424-Φ14220120
2516011585651424-Φ14275160
502501601251001634-Φ18358240
1003002151801552038-Φ18502320
20040033529526526312-Φ23820400
Frequently Asked Questions
What are the primary applications for stainless steel gate valves?
These valves are widely utilized in demanding environments such as chemical industrial parks, pharmaceutical pure water systems, and seawater desalination pipelines due to their corrosion resistance.
Does this valve support bidirectional sealing?
Yes, the metal seat gate valve features a bidirectional sealing direction with a zero-leakage sealing grade.
What is the temperature range for these valves?
The valves are designed to operate effectively in temperatures ranging from -30°C to 425°C.
Why is a bypass valve recommended for larger gate valves?
A bypass valve helps balance the pressure difference between the inlet and outlet before opening the main gate, which significantly reduces the manual force required for operation.
How are the valves protected during shipping?
All products are packed using standard export wooden cases to prevent damage, lifting accidents, or collisions during international transportation.
What standards do these gate valves comply with?
Our gate valves are manufactured to meet international standards including EN, API, DIN, and GOST.
