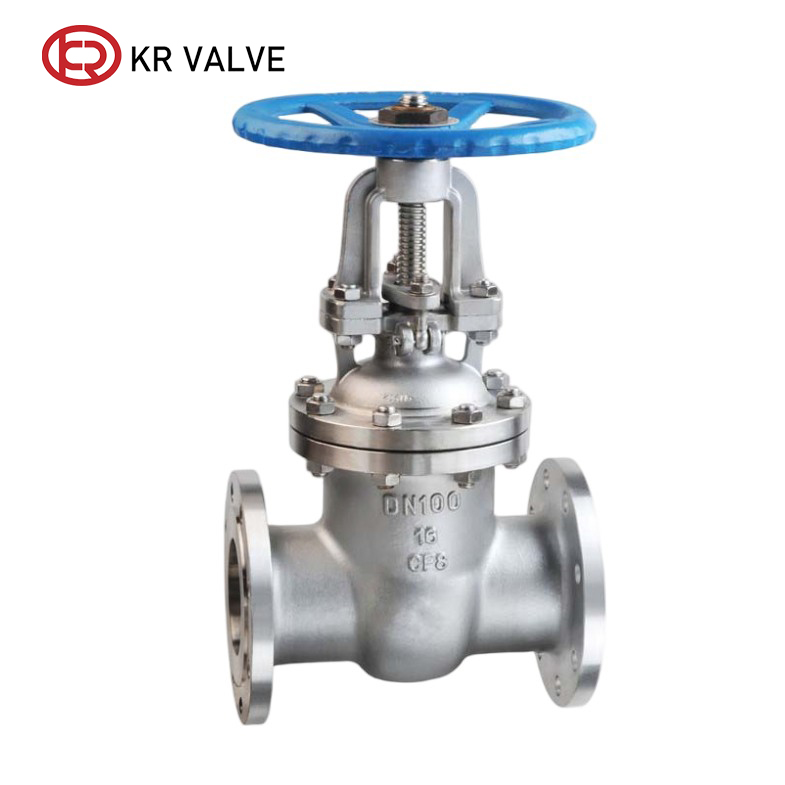

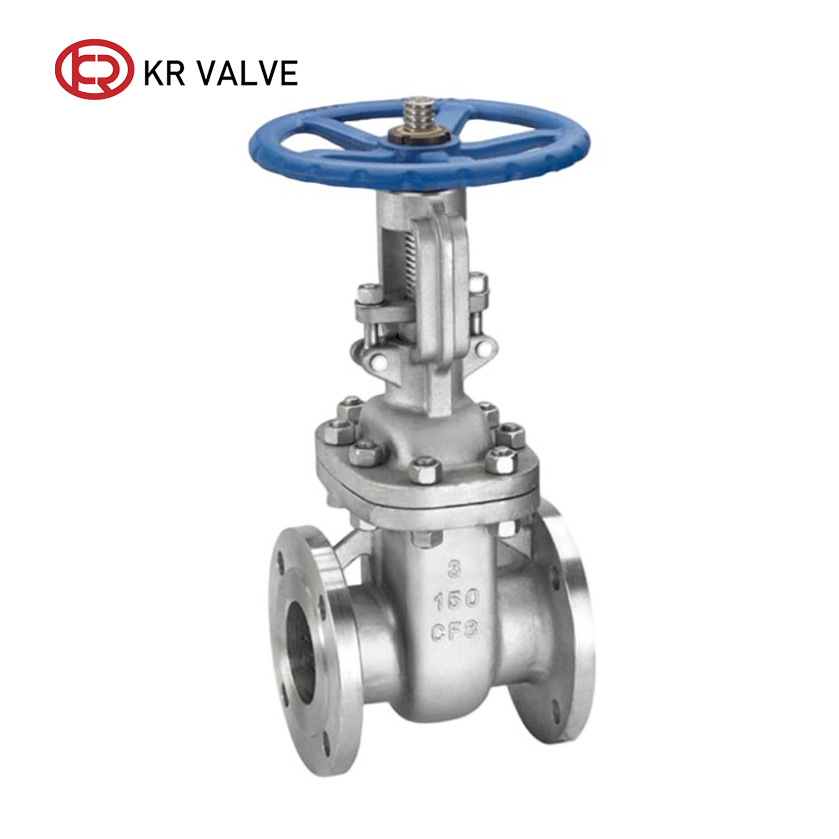

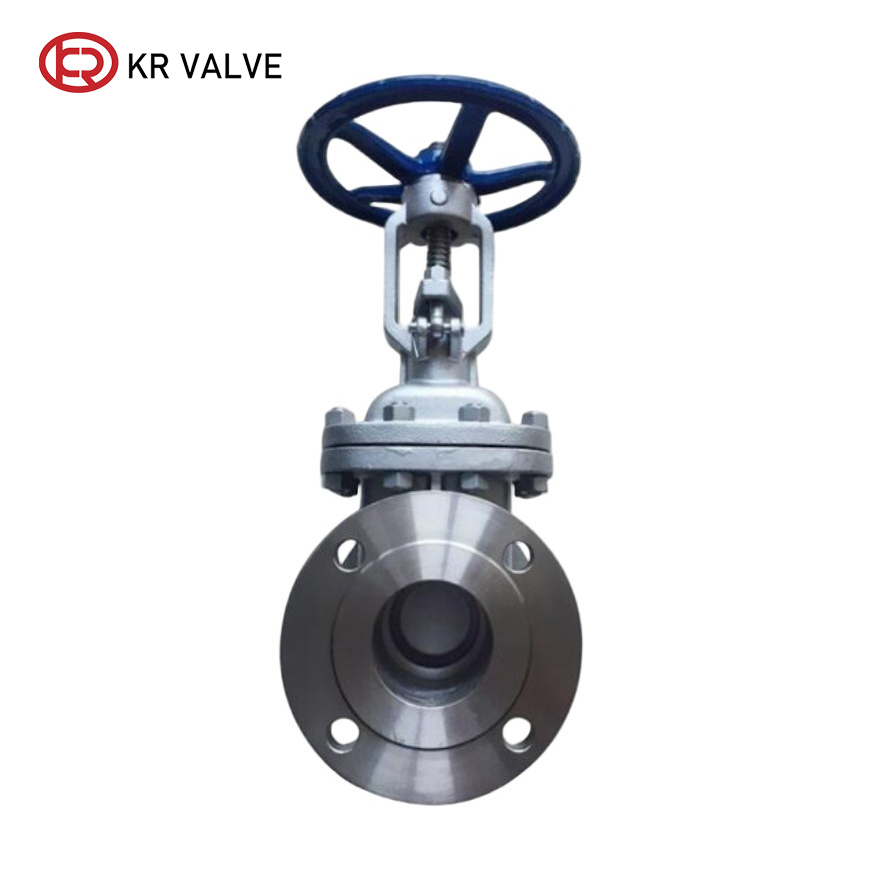

Custom CF8 gate valve DN100 4’ high pressure valve Manufacturers, Manufacturer

Type: Metal to metal seated

Series: Z41H-16C

Size: DN50-DN1000/2â€-40â€

Pressure rating: PN16/PN25/PN64/150LB/300LB/600LB

Design standard: BS/API/DIN

Service: OEM&ODM

The CF8/SS304 gate valve has excellent corrosion resistance and can withstand corrosion from weak acids, weak bases, salt solutions, seawater and other media.

Send Inquiry

Product Description

Product Specifications

Valve Type:	Metal seat gate valve	Structure:	Rising type
Standard:	EN/API/DIN/GOST	Workmanship:	Investment casting
Sealing direction:	Bidirectional	Sealing grade:	Zero leakage
Temperature:	-30°C < T < 425°C	Operation:	Handwheel

★

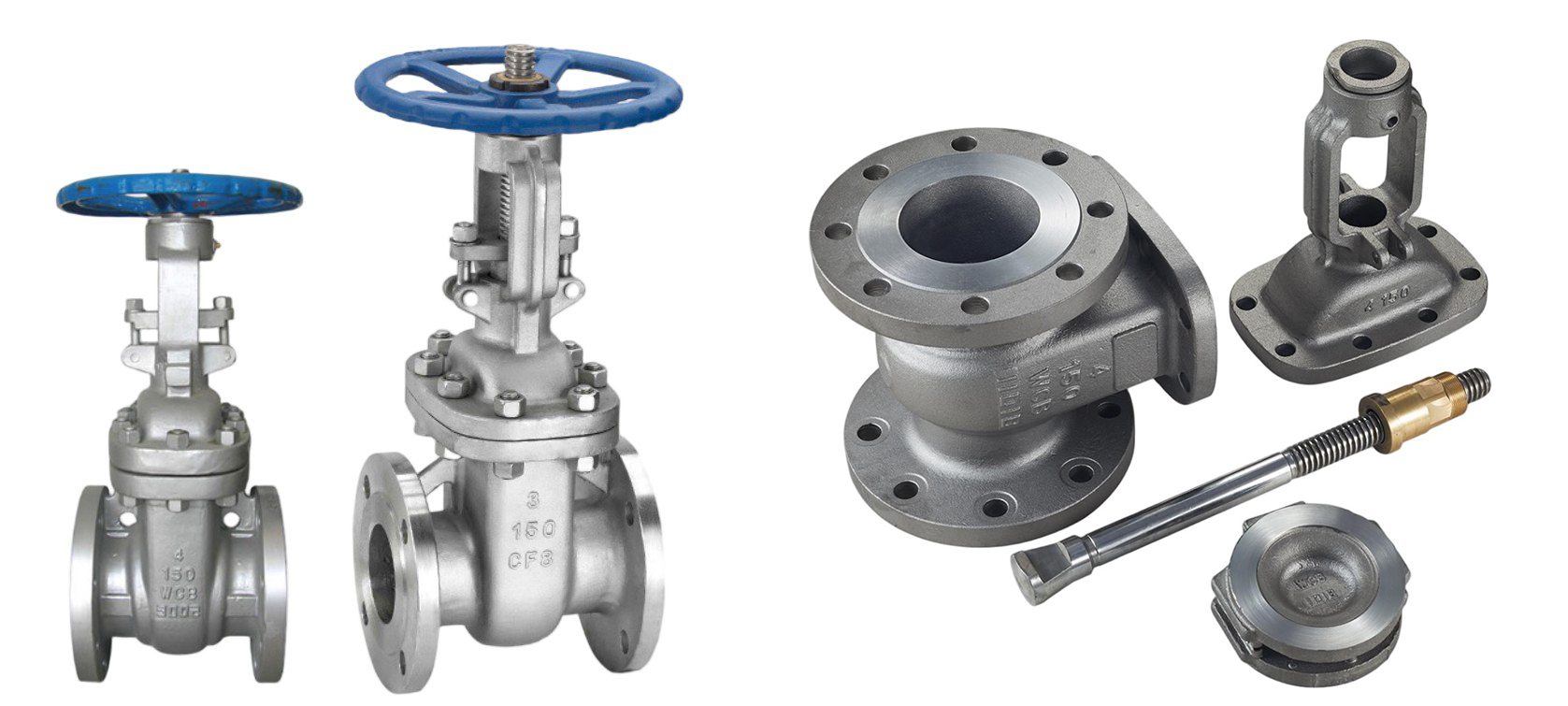

Characteristics

The stainless steel gate valves can operate stably within the range of -200 ℃ (ultra-low temperature liquid nitrogen working condition) to 600 ℃ (high temperature steam working condition), and are not easily oxidized or deformed at high temperatures, with no risk of brittle fracture at low temperatures. It has a wider temperature range and is suitable for more extreme working conditions.

✔

Core Advantages

Flexible structural adaptability: It can be designed as a visible or hidden stem structure. The visible stem type allows for intuitive determination of opening/closing status and protects the stem from corrosion. The concealed rod structure is compact for limited spaces. It supports various connections like flanges, butt welding, and clamps.

Lightweight and environmentally friendly: Stainless steel offers higher strength than carbon steel. Under the same pressure level, the wall thickness can be reduced, making the valve 10%-20% lighter. Additionally, the material is 100% recyclable, meeting modern environmental requirements.

⛟

Packing & Application

Packing: Standard export wooden case packaging ensures safe international transit.

Application Scenarios: These valves are widely used in chemical industrial parks, pharmaceutical pure water systems, and seawater desalination pipelines.

Material Specifications

Valve body/cover	Gate board/seat	Stem	Stem nut	Padding	Handwheel
Carbon steel	Quality carbon steel + carbide alloy or stainless steel	Chrome stainless steel	Aluminum bronze	Graphite asbestos packing	Malleable iron ductile Iron
Ti-Cr-Ni steel	Stainless steel or carbide alloy	Ti-Cr-Ni stainless steel	Aluminum bronze	Baptist PTFE	Malleable iron ductile Iron
Ti-Cr-Ni-Mo steel	Stainless steel or carbide alloy	Ti-Cr-Ni stainless steel	Aluminum bronze	Asbestos packing	Malleable iron ductile Iron
Cr-Mo steel	Alloy Steel + carbide alloy	Al-Cr-Mo steel 318	Aluminum bronze	Flexible Graphite Filled PTFE	Malleable iron ductile Iron

Dimensions (PN 1.6 - 4.0 MPa)

PN (MPa)	DN (mm)	L	D	D1	D2	b	f	N-Φd	H	D0
1.6	50	250	160	125	100	16	3	4-Φ18	358	240
	100	300	215	180	155	20	3	8-Φ18	502	320
	200	400	335	295	265	26	3	12-Φ23	820	400
	300	500	460	410	375	40	3	12-Φ25	1142	560
	600	800	840	770	718	48	5	20-Φ41	1874	800
Data continues for PN 2.5 and 4.0 (See full technical sheet for all DN sizes)

Frequently Asked Questions

Q1: What is the applicable temperature range for these gate valves? A: These valves are designed to operate from ultra-low temperatures of -200°C up to high-temperature conditions of 600°C without risk of brittle fracture or deformation.

Q2: Which international standards do these valves comply with? A: Our stainless steel gate valves are manufactured in accordance with EN, API, DIN, and GOST standards.

Q3: Are these valves suitable for bidirectional flow? A: Yes, these metal seat gate valves feature a bidirectional sealing direction with a zero-leakage sealing grade.

Q4: What are the main benefits of using stainless steel over carbon steel? A: Stainless steel is more corrosion-resistant, offers higher strength-to-weight ratios (making the valve 10-20% lighter), and is 100% recyclable.

Q5: In which industries are these valves commonly used? A: They are widely applied in chemical industrial parks, pharmaceutical water treatment, seawater desalination, and high-temperature steam systems.

Q6: What type of packaging is used for shipping? A: We use standard export wooden cases to ensure the valves are protected from physical damage and environmental factors during transport.
