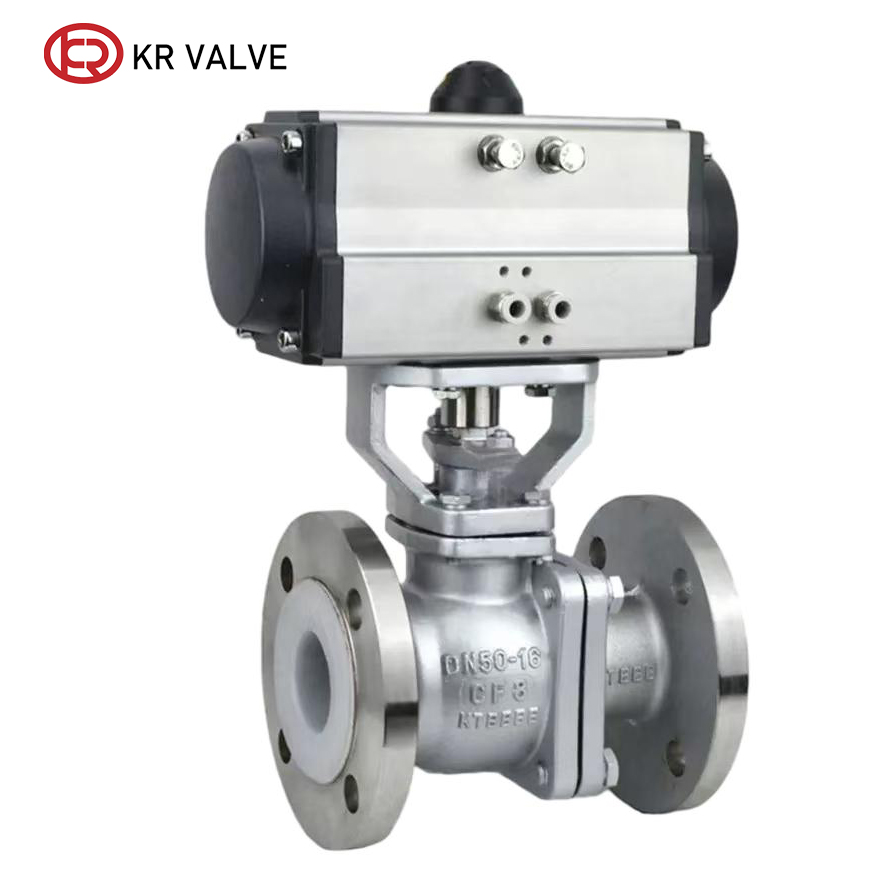

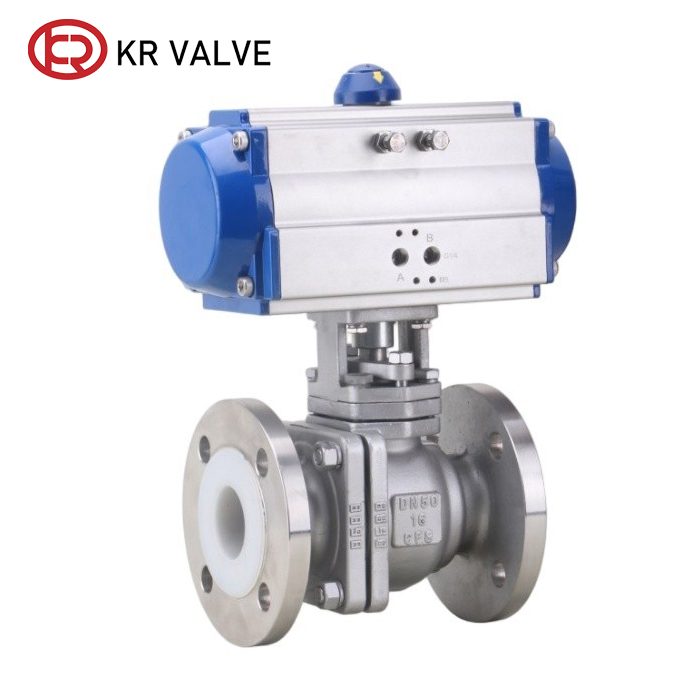

OEM Stainless Steel PTFE Lined Ball Valve Single Acting Pneumatic Operation Supplier, Suppliers

Type: Flange type

Series: Q941F46-10/16

Size: DN50-DN300/2â€-8â€

Pressure rating: PN16/PN25

Design standard: BS5351

Service: OEM&ODM

This pneumatic ball valve adopts a single acting pneumatic actuator and is equipped with a reset spring inside.

Send Inquiry

Product Description

Product Specifications

Valve Type:	Flange ball valve	Structure:	2PCS type
Standard:	BS5351	Workmanship:	Investment casting
Sealing Direction:	Single-directional	Sealing Grade:	Zero leakage
Temperature:	-20°C < T < 120°C	Operation:	Pneumatic

Characteristics

This pneumatic ball valve can be equipped with solenoid valves (to control the on/off of the air source), valve positioners (to achieve proportional adjustment function), and limit switches (to provide feedback on the valve's opening and closing status) according to actual control needs, forming a complete automation control circuit.

Technical Advantages

🛡️

Strong corrosion resistance: PTFE lined ball valves have extremely high chemical stability and can withstand corrosion from strong acids, alkalis, and organic solvents. They are suitable for a wide pH range and can be used in any strongly corrosive medium except for "molten alkali metals and elemental fluorine".

💎

Good sealing performance: The soft seal valve seat is made of materials such as PTFE or F46, with a leakage level of up to ANSI Class VI, and some models can achieve zero leakage.

⚡

Fast response speed: Pneumatic actuators typically have a response time of ≤ 0.5 seconds and can quickly respond to control signals, supporting remote automation control.

Packaging & Delivery

Standard export wooden case packaging is utilized to ensure the safety of the valves during international transit.

Application Scenarios

The pneumatic ball valves with PTFE lined are widely used in industries such as chemical, pharmaceutical, environmental protection, and power. In the chemical industry, it is used for flow control of strong acid and strong alkali media; in the pharmaceutical and food industries, it is ideal for high hygiene fluid regulation.

Material Specifications

Part Name	Material	Part Name	Material
Body	WCB, CF8, CF8M	Stem	2Cr13, 304, 316
Seat	PTFE	Packing	PTFE
Ball	WCB, CF8, CF8M	Packing Gland	WCB, CF8, CF8M
Sealing Gasket	PTFE	Handle	Stainless Steel

Dimensions

PN (MPa)	DN (mm)	D	D1	D2	D3	f	b	n-Φ d	L	H	W
1.6	15	13	45	65	95	2	14	4-Φ 14	130	75	130
	25	25	65	85	115	2	14	4-Φ 14	150	90	170
	50	51	100	125	160	3	16	4-Φ 18	200	140	250
	100	102	155	180	215	3	20	8-Φ 18	280	206	420
2.5	15	13	45	65	95	2	14	4-Φ 14	130	75	130
	50	51	100	125	160	3	20	4-Φ 18	200	140	250
	100	102	160	190	230	3	24	8-Φ 23	280	206	420

Frequently Asked Questions

What are the main advantages of PTFE lined pneumatic ball valves?

They offer exceptional corrosion resistance, high sealing performance (zero leakage), and rapid response times for automated systems.

Which industries typically use these valves?

They are widely used in chemical processing, pharmaceutical production, environmental wastewater treatment, and the power industry.

What is the response time of the pneumatic actuator?

The pneumatic actuators are designed for speed, typically responding to control signals in 0.5 seconds or less.

Can these valves handle extremely corrosive media?

Yes, the PTFE lining is stable against almost all strong acids and organic solvents, except for molten alkali metals and elemental fluorine.

What standards do these flange ball valves meet?

These valves are manufactured according to the BS5351 standard with investment casting workmanship.

What kind of packaging is provided for shipping?

All products are packed in standard export wooden cases to prevent damage during long-distance transportation.
