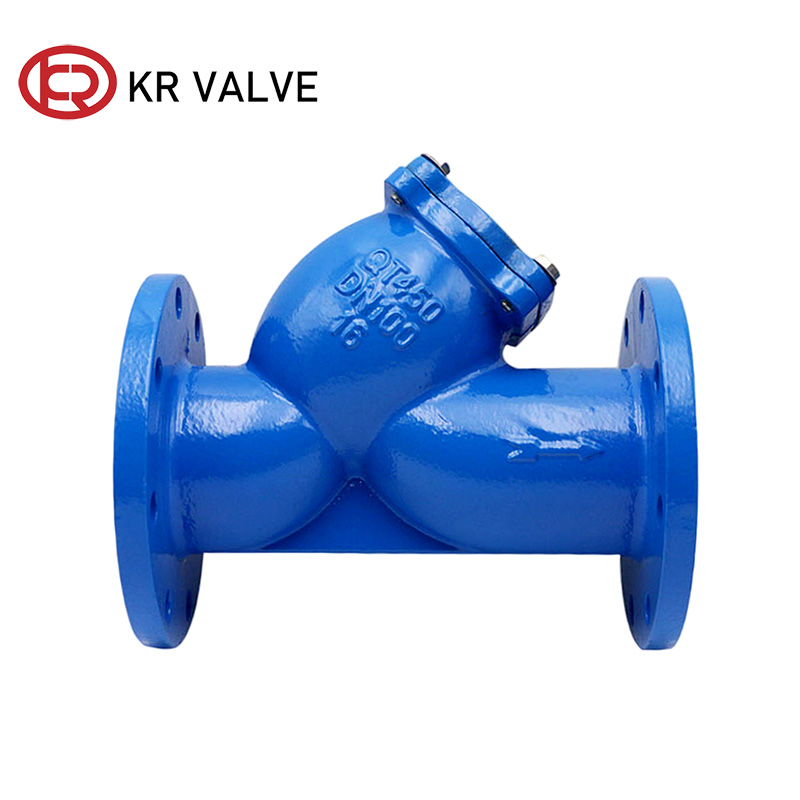

| Valve Type | Flange Y type strainer | Structure | Removable |
|---|---|---|---|
| Standard | BS5155 | Workmanship | Investment casting |
| Sealing Direction | Single-directional | Sealing Grade | Zero leakage |
| Temperature | -20°C < T < 120°C | Operation | Automatic |

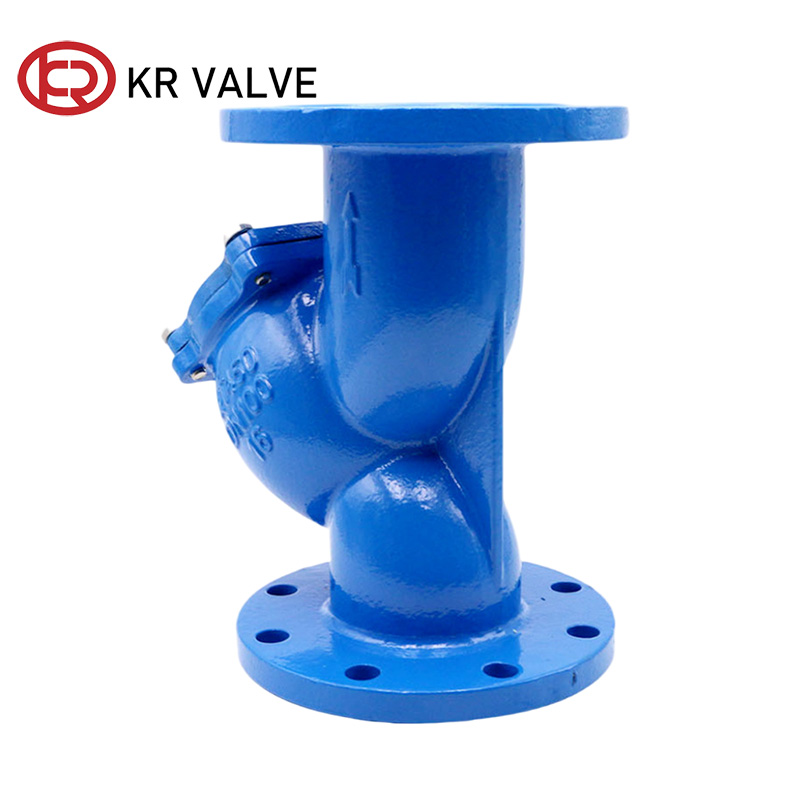

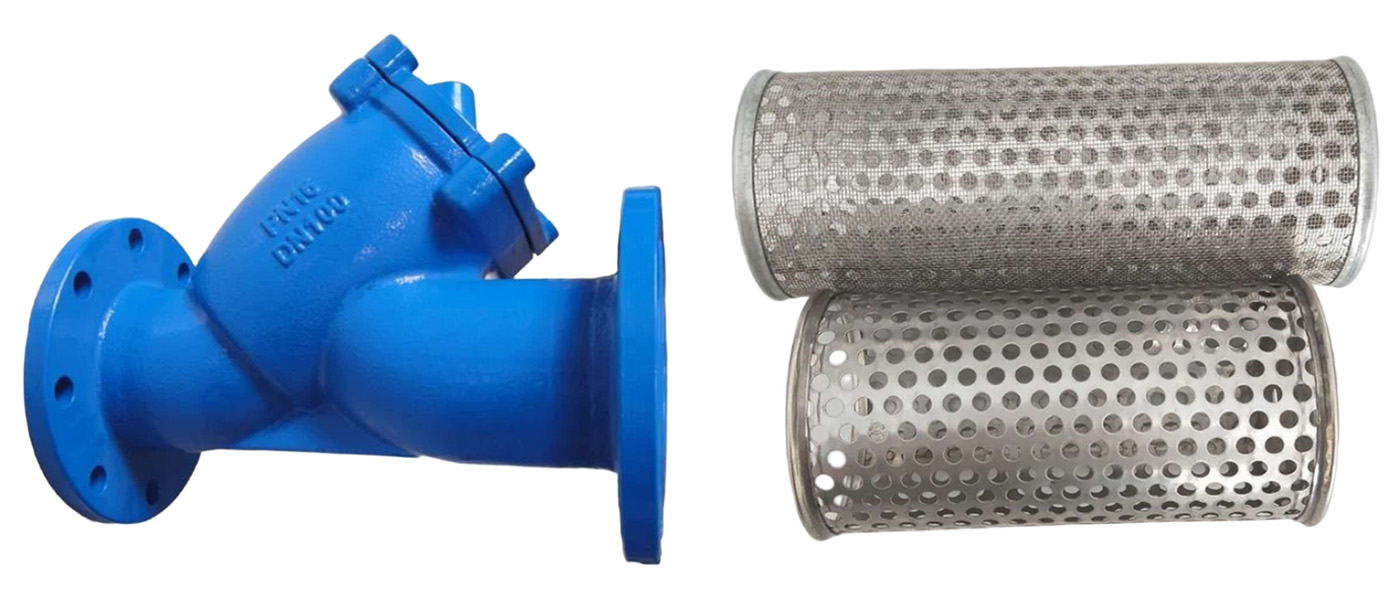

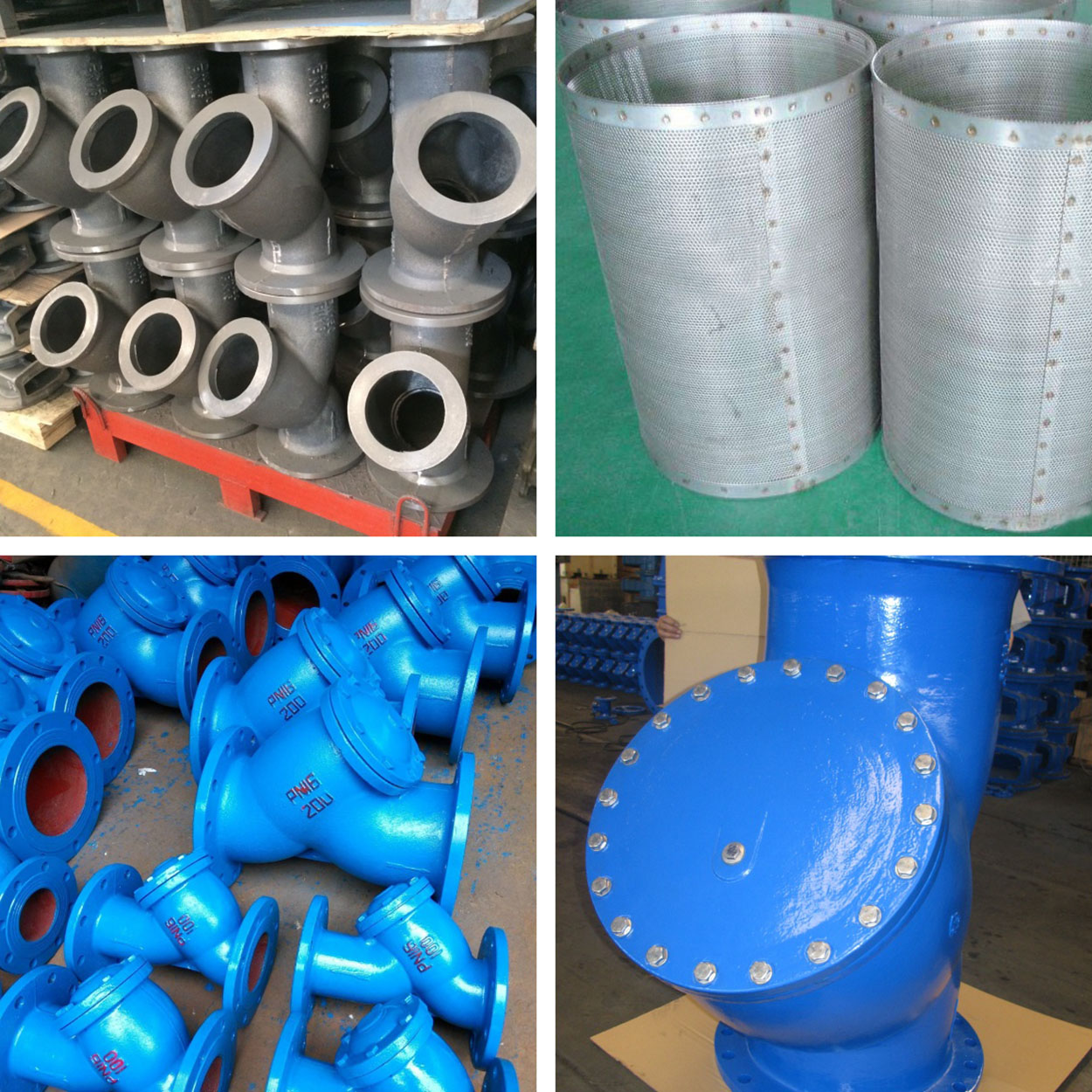

The y strainer flange type adopts a stainless steel filter screen (commonly made of 304/316 material), and the filter aperture can be customized according to the working conditions. It can accurately intercept solid particles and impurities such as sand and gravel, welding slag, and rust in the fluid, effectively protecting downstream precision equipment such as valves, pumps, and flow meters.
The Y-shaped channel design conforms to the principles of fluid mechanics, with low resistance when the fluid passes through. Under normal operating conditions, the pressure drop at the inlet and outlet is ≤ 0.05MPa, and it will not have a significant impact on the flow rate of the pipeline.
The overall structure is Y-shaped, with a compact size and less space occupation. It can adapt to various installation methods such as horizontal and vertical (fluid from top to bottom), and can also adjust the installation direction according to the type of medium (such as gas medium, it is recommended that the filter face downwards).
There are various connection methods, including flange connection, threaded connection, welding connection, etc., which can match industrial pipelines of different diameters and have strong adaptability.
Standard export wooden case packaging

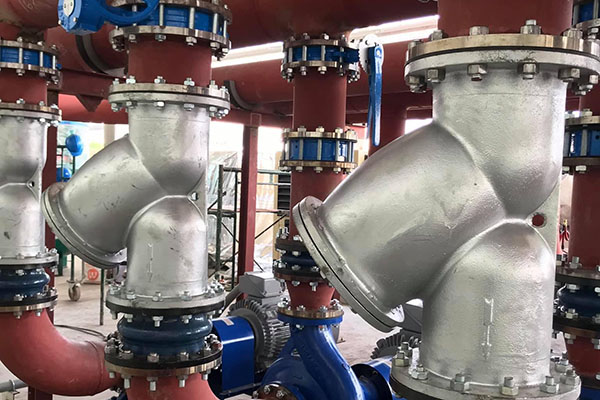

The flanged y strainer widely used in multiple industries such as chemical, power, metallurgy, construction, HVAC, and water supply and drainage, it is suitable for coarse filtration scenarios of various fluid media such as liquids, gases, and steam. It is one of the most commonly used pre filtration equipment in industrial pipeline systems.
| Part Name | Pipe Body | Screen | O Ring |
|---|---|---|---|
| Material | Cast iron, Ductile iron, cast steel | Stainless steel | NBR |
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

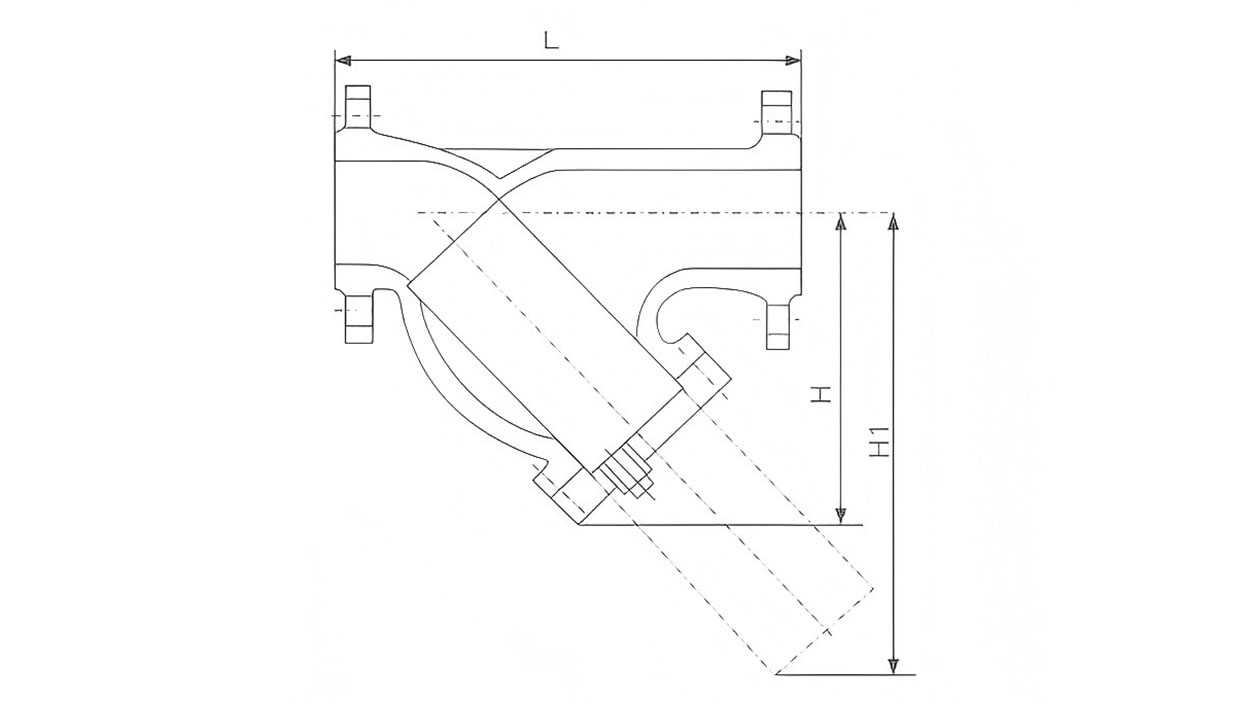

| L | GB | 205 | 215 | 250 | 295 | 315 | 345 | 420 | 530 | 610 | 630 | 720 | 735 | 870 |
| DIN | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | |
| H | 155 | 198 | 210 | 250 | 305 | 358 | 450 | 503 | 578 | 598 | 618 | 693 | 765 | |
| H1 | 195 | 270 | 295 | 344 | 422 | 485 | 602 | 710 | 815 | 844 | 872 | 978 | 1080 | |
